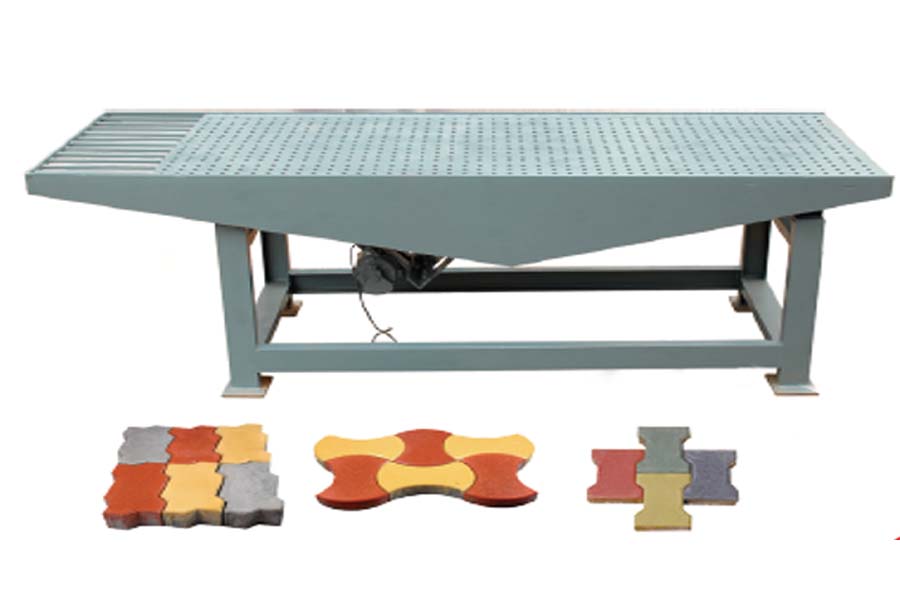

| Vibroforming Table | |
| Technical Specification | |
| Power | : 2 HP Motor/Table x2 table |
| Total Horse Power | : 4 HP |
| Vibrating Table Size | Length : 3000mm x Width :830mm x Height: 900mm (Total length : 8000mm) |
| Max. size of tiles | : 600 x 600mm |
| Max. height of tiles | : 100 (recommended) |
| Weight | : 600kg . x2 (approx) |
| Movement of rubber mould | : Due to vibration with manual intervention in vibration table |
| Production Capacity | : 2000 sqft./shift for Interlock 2500 sqft./shift for Tiles |
Vibration Table is equipped for vibration of plastic moulds which are filled with concrete for the compaction process. The Moulds are transited from one end to the other without any manual intervention.

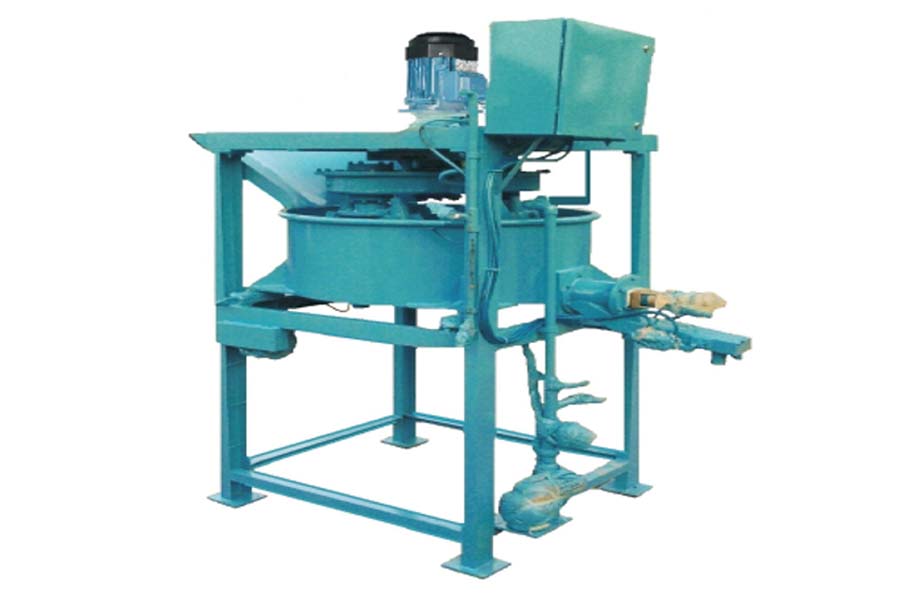

Pan mixer is used for the mixing of the color oxides and concrete layer which is scooped first to the mould. Then the moulds are transited to the first vibration process, for the compaction of the layer.
| Tile Mixer Machine for Face Mixing | |
| Technical Specification | |
| Capacity | : 150 kg. /batch |
| Power | : 3 HP. motor (Jai/Kirlosker) |
| Drum Speed | : 35 RPM |
| Plate Thickness | : Bottom :10mm Drum plate:10mm |
| Dimension | : 32" dia., depth 16" |
| Reduction Gear Box System | : Ratio : 40:1 , No: 3 |
| Brand | : MM Gears/Helicon |
| Bearing | : SKF |
| Muller Type Base Mixing Machine | |
| Technical Specification | |
| Capacity | : 500 kg. |
| Power | : 7.5 HP. motor (Jai/Kirlosker) |
| Dimension | : 50" dia., depth 18" |
| Weight | : 750 Kg |
| Muller Rotation P Mi | : 16 RPM |
| Plate Thickness | : 12 mm bottom Drum plate:10mm |
| Gear Box System | : Bottom (open type) |
| Bearing | : SKF |

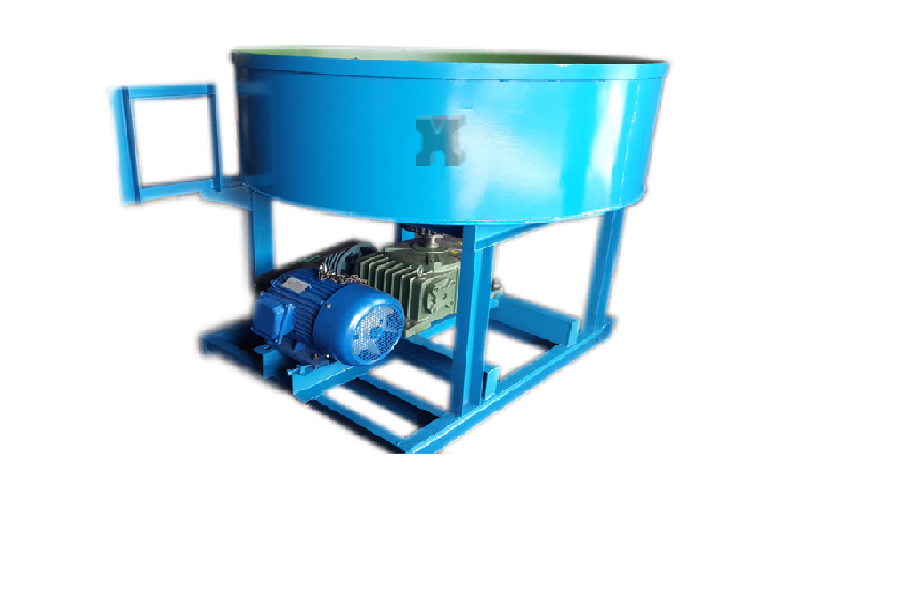

The grey mixer is used for mixing of second layer of concrete mix which doesn’t have a colour. The second layer is filled and vibrated again for compaction.
